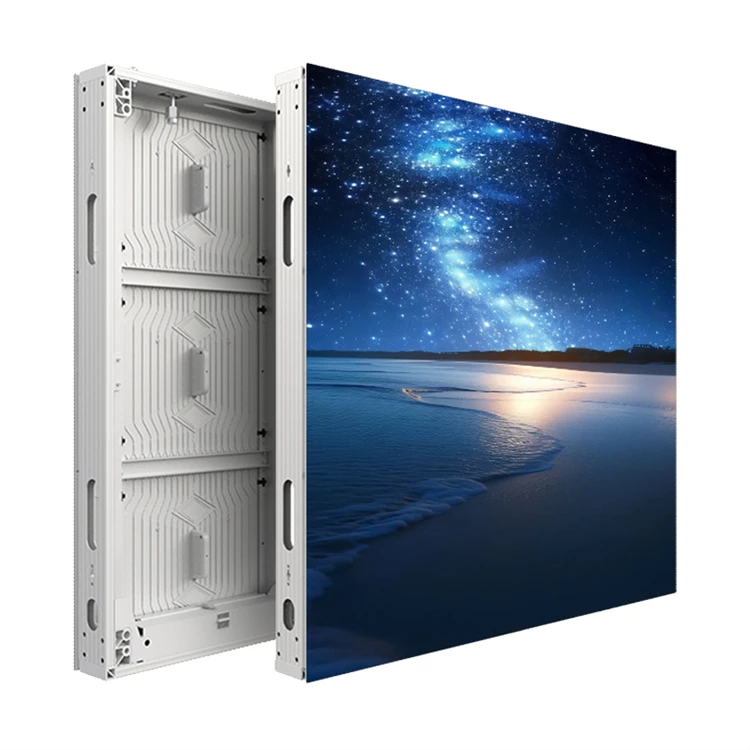

The High-Quality SKYWORTH 3840Hz Outdoor LED Display offers stunning visuals with its superior refresh rate, ensuring smooth and seamless playback. Designed for outdoor use, it boasts exceptional durability and weather resistance, making it perfect for malls, advertisements, and other public spaces. With full-color capabilities, it delivers vibrant and lifelike imagery, capturing every detail with precision. Experience the next level of visual clarity and reliability with the SKYWORTH 3840Hz Outdoor LED Display.
|
Pixel Pitch(mm)
|
5.7
|
|
Module Size(mm)
|
480×320×16
|
|
Cabinet Resolution(W×H)
|
168×168
|
|
Cabinet Size(mm)
|
960×960×87
|
|
Cabinet Weight(kg/cabinet)
|
24.5
|
|
Cabinet Material
|
Profile cabinet
|
|
Cabinet Density（dot/m²）
|
30625
|
|
IP Rating
|
IP66
|
|
White Balance Brightness(nits)
|
≥5000
|
|
Color Processor(bit)
|
16
|
|
Color Temperature(K)
|
6500-9000
|
|
Visual Angle(H/V)
|
140°/ 120°
|
|
Luminous point centre deviation
|
＜3%
|
|
Luminance uniformity
|
≥97%
|
|
Chromaticity uniformity
|
Within ±0.003Cx, Cy
|
|
Contrast Ratio
|
≥15000:1
|
|
The Max Power Consumption(W/㎡)
|
550
|
|
Average Power Consumption(W/㎡)
|
186
|
|
Input Voltage
|
AC100~240V
|
|
Frequency(Hz)
|
50&60
|
|
IC Driving(s)
|
1/7
|
|
Refreshing Ratio(Hz)
|
3840
|
|
Maintenance Method
|
Front and Rear
|
|
Lifespan(hrs)
|
100,000
|
|
Work Temperature/Humidity
|
-40℃-80℃/10%RH-98%RH (Non Condensing)
|
|
Storage Temperature/Humidity
|
-20℃-60℃/10%RH-98%RH (Non Condensing)
|
